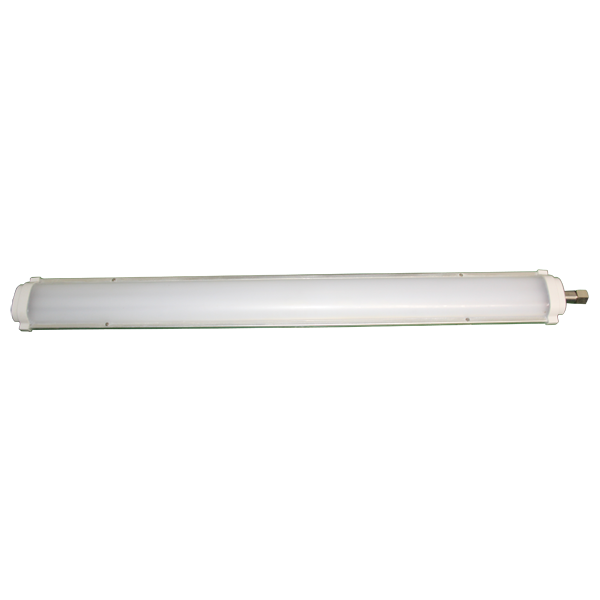

LED Explosion Proof Linear lights EPTL02

MODEL:EPTL02 ( former model EPTL03)
20W/40W/60W
Ex mark:2 G D Ex ec IIC T6 Gb, Ex tc IIC T80℃ Dc

Has ATEX already

Application:

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.

Features:

1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;

2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

6. Smart appearance, equip with two mounting brackets，it can be installed easily.

Technical Parameters:
