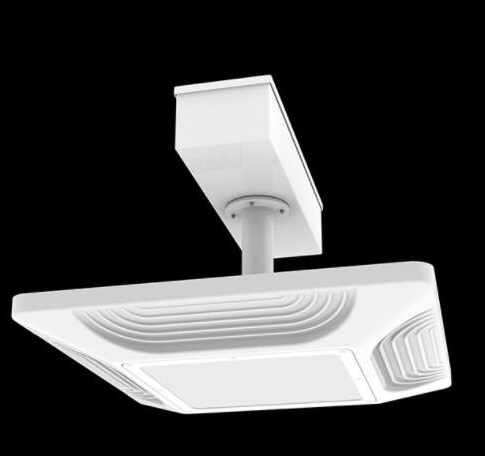

LED Gas Station/Canopy Light
Model: EGSL02
*Overview
LED explosion proof gas stationlights comply with the relevant requirements of GB3836.1-2010 (Explosiveenvironment Part 1: General requirement), GB19518.1-2004 (Explosive environmentPart 8: "n" type electrical equipment), GB12476.1-2013 (Electricalequipment for flammable dust environments - Part 1: General requirements) andGB 12476.5-2013 (Electrical equipment for flammable dust environment - Part 5:Shell protection type "tD"), The EX mark is Ex nR II T5 Gc/ Ex tA A21IP65 T95°C,suitable for Zone 2 hazardous areas containing Class II A, B, C T1~T5 flammablegas or explosive mixtures of vapor and air, hazardous areas containing Zone 21,Zone 22 combustible dust and where Explosive Gas and Flammable Dust may occursimultaneously or separately. It is designed and manufactured by standard, hasthe characteristics of small size, light weight and convenient installation.
*Applications
Apply in petroleum, chemical,dock, port, mining, aerospace, aviation, military, grain processing and otherplaces.
* TechnicalParameters
Item | Parameters | Remarks |
Input voltage(V) | 100/220V AC | AC Scope of application:100~285V |
Input frequency(Hz) | 50/60Hz | Scope of application:47~63 |
Rated power(W) | 70W, 100W, 150W | Optional |
Emergency power (W) time | 20W (Emergency time 30/60/90/120min) | Optional |
LED light source | SMD3030/5050 |
|
Whole fixture luminous efficiency(lm/W) | >130lm/w |
|
Beam angle(°) | 120 |
|
Color temperature(K) | 2700~4000(Warm white) 5000~6500(cold white) | Optional |
CRI(Ra) | >80 |
|
Lifetime(h) | >50000 | Light decay is less than 30% of the initial value |
Ex mark | Ex nR II T6 Gc, Ex tA A21 IP66 T95℃ |
|
Corrosion-proof grade | WF2 |
|
IP grade | IP65 |
|
Power factor | >95% |
|
Total harmonic current | <15%<> |
|
Ambient temperature(℃) | －20 ~ ＋40 |
|
Maximum temperature of the casing(℃) | <80<> |
|
Warranty(yrs) | 3-5years | Optional |
Net weight (kg) | <<>3.5 |
|
